Where to place rebar couplers for optimal structural integrity?

0
17

Reinforced concrete structures are designed to act as a monolithic unit, requiring continuous reinforcement over long spans. To achieve this, reinforcing bars (rebars) are often spliced together using rebar couplers, also known as mechanical splices. These couplers provide a strong connection and maintain the flexibility of the reinforcement.

Understanding Rebar Couplers:

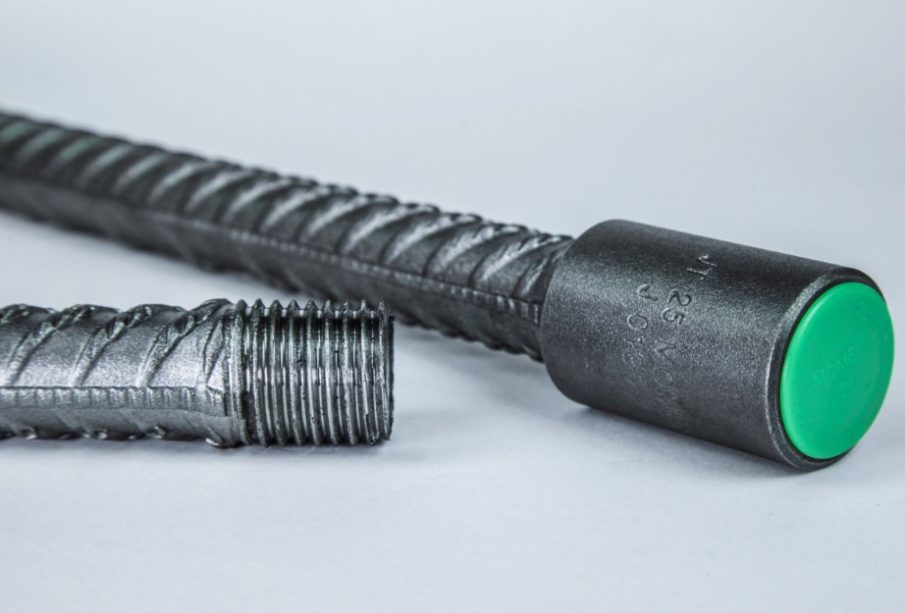

Rebar couplers are devices that join two rebars together, providing end-to-end connections. They are typically made of steel and are designed to transfer tensile and compressive forces between the rebars. Several types of rebar couplers are available, including threaded couplers, sleeve couplers, and epoxy couplers.

Benefits of Using Rebar Couplers:

Using rebar couplers offers several advantages over traditional lap splicing or welded connections:

  • Increased Strength and Stiffness: Rebar couplers provide a stronger and stiffer connection, especially for high-strength rebar.
  • Improved Concrete Placement: Rebar couplers eliminate protruding rebar ends, making placing and consolidating concrete easier.
  • Reduced Congestion: Couplers reduce the amount of congestion in reinforced concrete members, simplifying the placement and tying of rebar.
  • Reduced Waste: rebar coupling eliminate the need for lap splices, saving rebar and reducing waste.
  • Improved Worker Safety: Couplers reduce the need for welding, enhancing worker safety.
  • Enhanced Structural Integrity: Mechanical splices maintain load path continuity independently of the concrete condition, ensuring reliable performance.
  • No Reliance on Concrete for Load Transfer: In coastal areas, rebar corrosion may cause concrete delamination. Mechanical splices do not rely on concrete for load transfer, maintaining structural integrity.
  • Elimination of Lap Splicing Calculations: Mechanical splicing eliminates tedious calculations for determining proper lap lengths, reducing potential errors.
  • Reduced Material Costs: Mechanical splices do not overlap, resulting in less rebar usage and lower material costs.

Optimal Placement of Rebar Couplers:

Now, let’s discuss the optimal placement of rebar couplers to maximise their benefits and ensure structural integrity:

  • Placement in Tension Regions: When placing rebar couplers in tension regions, ensure they can develop the full strength of the rebar without creating a weak point. This is crucial for maintaining the performance of the system during plastic deformations.
  • Seismic Applications: In structures designed for seismic loads, place rebar couplers strategically to maintain structural integrity when bars are stressed beyond yield. This allows for the predictable formation of plastic hinges.
  • Coastal Environments: In coastal regions with high humidity and salt exposure, prioritise the use of rebar couplers to prevent rebar corrosion and subsequent concrete delamination.
  • Complex Reinforcement Patterns: In structures with complex reinforcement patterns, rebar couplers can simplify the rebar placement by eliminating the need for long overlapping bars.
  • Large Structures: For large structures where the required bar length exceeds the stock length of steel, rebar couplers provide a convenient and cost-effective solution by joining multiple bars together.
  • Retrofit Designs: When modifying existing structures or extending reinforcement, rebar couplers are ideal for connecting additional bars to the ends of existing rebars.
  • Congested Areas: In heavily congested areas with limited space, sleeve couplers are a good choice as they can be used in tight spaces.
  • High-Strength Connections: For connections requiring very high strength, epoxy couplers are recommended. The epoxy resin provides a strong and durable connection.
  • General Applications: Threaded couplers are versatile and suitable for most general applications.

Optimal placement of rebar couplers is essential to enhance the structural integrity of reinforced concrete constructions. Rebar couplers offer a cost-effective, reliable, and efficient alternative to traditional lap splicing, improving the overall quality of reinforced concrete constructions.
